LPMachinery

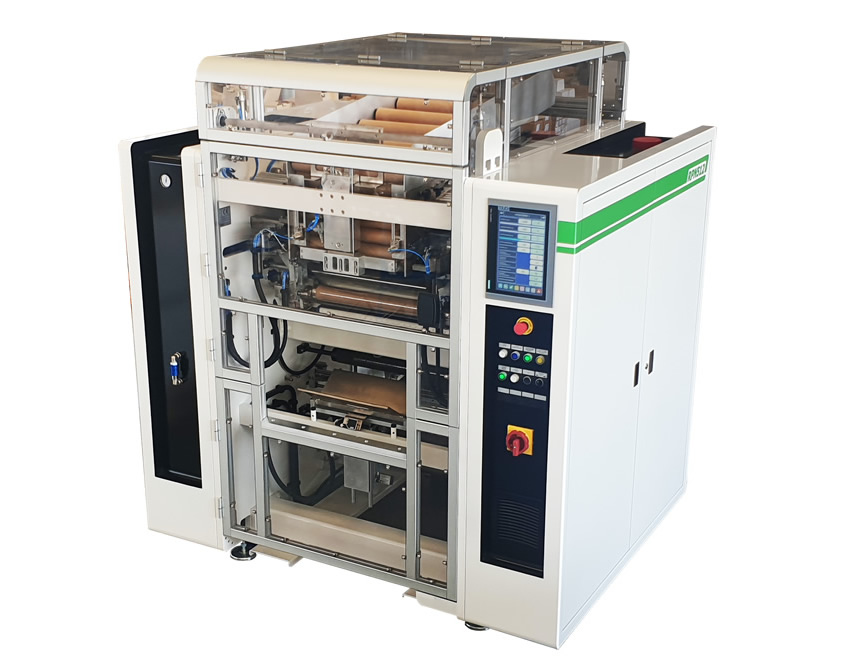

RPN512

This fully-automatic pre-stretch rewinder is simply the most advances machine of its kind in the industry today.

Engineered using the latest technology, the operator friendly RPN512 gives users an edge over the competition.. Highly recommended for the latest NANO layers technology stretch films thanks to our ongoing R&D focused on our proprietary tension control software and other systems that make the RPN 512 a one of a kind machine. IoT technology, “GEARING” servomotor connection and self-diagnosis are only some of the features that will take your pre-stretching process to a whole new level.

RPN512 TECHNICAL SPECIFICATIONS
TECHNICAL FEATURES:
Suitable materials:	stretch-film
Initial film thickness:	10-30 μ
Mother roll (Jumbo):
Maximum diameter:	450 mm
Width:	450-500 mm
Core internal diameter:	76.2 mm (3”)

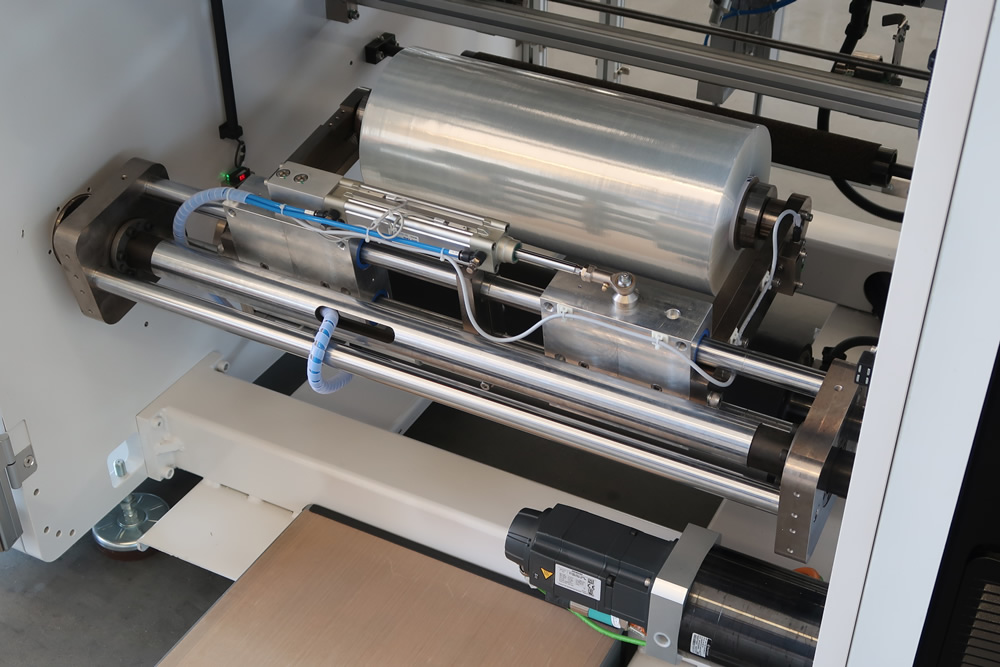

Finished roll:
Maximum diameter:	250 mm
Core lenght:	400-620 mm
Film width:	380-500 mm
Core internal diameter:	25 mm, 38 mm, 50 mm, 75 mm (1”, 1,5”, 2”, 3”)
Mechanical speed:	1400 m/min
Production speed:	1100 m/min
Installed power:	16 kW
Rollers coating:
Prestretch rollers	Maintainance free special coating
Widing roller :	Anti air special coating
Idle rollers	Gripping/releasing special coating
Power supply:
Primary:	3ph 400V 50 Hz + N + PE
Auxiliary:	24V d c.
Service:	220V
Consumption:	11 kW/h
Compressed air: Pressure:	7 bar
Electrical standards:	CE regulations
Safety standards:	CE regulations
Average noise level:	< 82 dBA
Overall size:
RPN512 (l x w x h):	1493 x 1840 x 1624 mm
Maximum weight:	2400 kg
MAIN ELECTROPNEUMATIC COMPONENTS
Electromechanics:	Siemens
PLC:	Siemens
Operator pannel:	Siemens

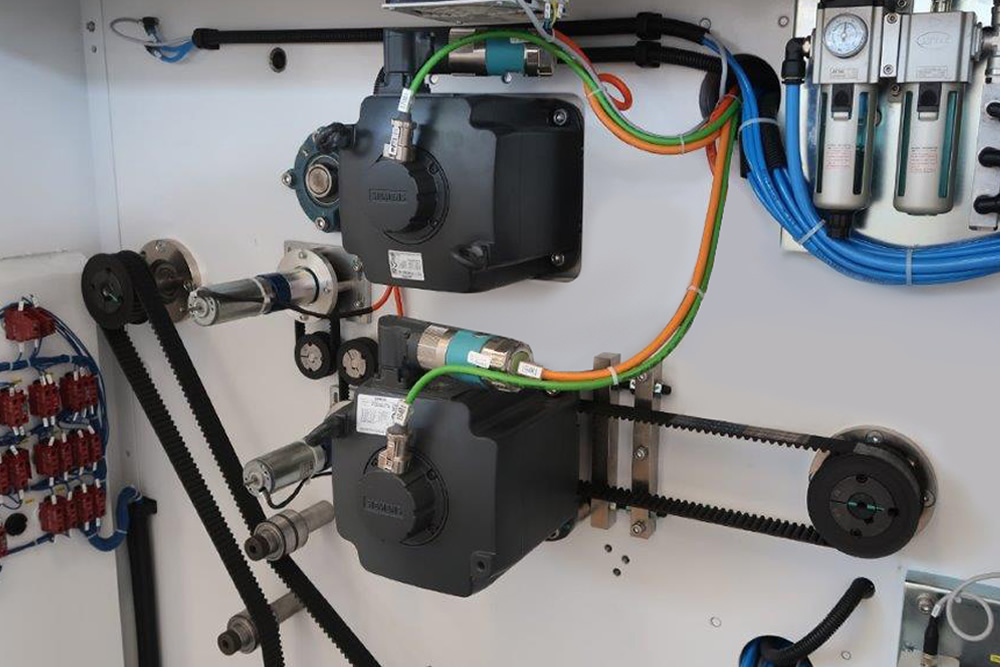

Servo motors:	Siemens
Pneumatics:	Festo

RPN512 TECHNICAL SPECIFICATIONS

TECHNICAL FEATURES:

Suitable materials:

stretch-film

Initial film thickness:

10-30 μ

Mother roll (Jumbo):

Maximum diameter:

450 mm

Width:

450-500 mm

Core internal diameter:

76.2 mm (3”)

Finished roll:

Maximum diameter:

250 mm

Core lenght:

400-620 mm

Film width:

380-500 mm

Core internal diameter:

25 mm, 38 mm,
50 mm, 75 mm
(1”, 1,5”, 2”, 3”)

Mechanical speed:

1400 m/min

Production speed:

1100 m/min

Installed power:

16 kW

Rollers coating:

Prestretch rollers

Maintainance free special coating

Widing roller :

Anti air special coating

Idle rollers

Gripping/releasing special coating

Power supply:

Primary:

3ph 400V 50 Hz + N + PE

Auxiliary:

24V d c.

Service:

220V

Consumption:

11 kW/h

Compressed air: Pressure:

7 bar

Electrical standards:

CE regulations

Safety standards:

CE regulations

Average noise level:

< 82 dBA

Overall size:

RPN512 (l x w x h):

1493 x 1840 x 1624 mm

Maximum weight:

2400 kg

MAIN ELECTROPNEUMATIC COMPONENTS

Electromechanics:

Siemens

PLC:

Siemens

Operator pannel:

Siemens

Servo motors:

Siemens

Pneumatics:

Festo

RPN 512

RPN512

RPN512 TECHNICAL SPECIFICATIONS

TECHNICAL FEATURES:

MAIN ELECTROPNEUMATIC COMPONENTS

RELIABILITY AT ITS BEST
